Outdoor Optical Fiber Wire and Cable Extrusion Machine cable making machine Affordable Brazil Market

Name: Outdoor Optical Fiber Wire and Cable Extrusion Machine cable making machine Affordable Brazil Market
Brand: HOOHA/HH
Price: 1 USD

China Outdoor Optical Fiber Wire and Cable Extrusion Machine cable making machine Affordable Brazil Market wholesale

Brand Name : HOOHA/HH

Model Number : HH-70/90

Certification : CE,ISO,SGS

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets/year

Delivery Time : 60 working days

Packaging Details : 1. film packing 2. wooden package 3.enclosed wooden package

Condition : New

Driven Type : Electric

Motor : Germany-Siemens

Packing : Wooden Case

Usage : Multifunctional

Warranty : 12 Months

Demoulding : Automatic

Contact Now

Product Description

Outdoor Optical Fiber Wire and Cable Extrusion Machine cable making machine Affordable Brazil Market

Brazil Outdoor Optical Fiber Cable Machine

1,the cable machinery is Suitable for optical cable outer sheath and core strengthening comprehensive production, can also be used
 for inner protection layer production
 2,PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
 3,PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel- plastic compound belt,PE composite outer sheath.
 4,Parallel double steel wire tube bundling type optic-fibet cable.

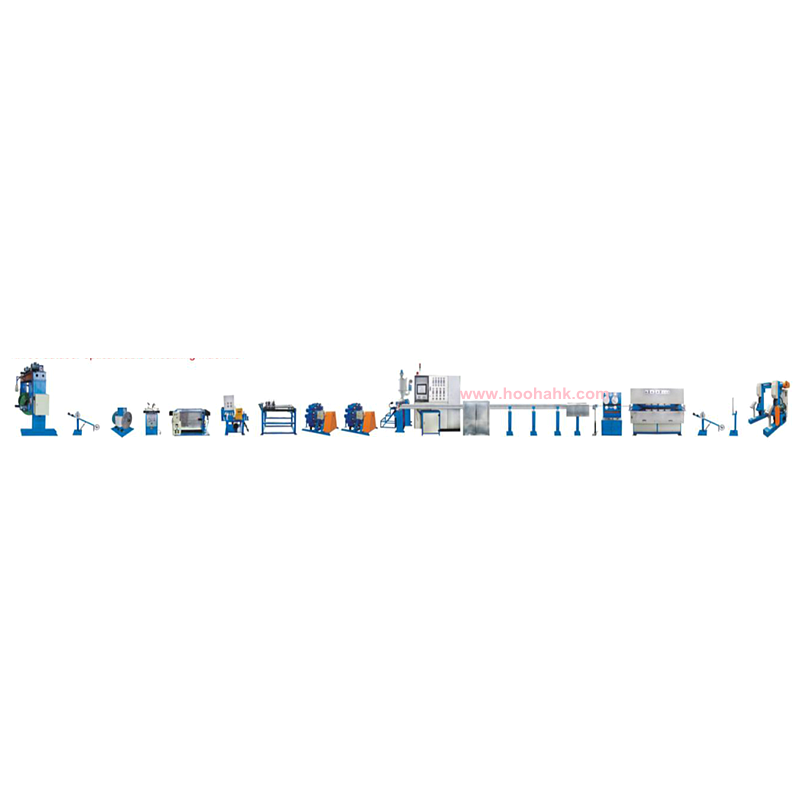

Jacket Extrusion HH-E-90 optical fiber cable jacket extrusion machine.

1.Frame :A3 steel plate and trough steel welding . 2.Slowdown box: copy Italy 133-10 type , Gear box (gear ) precision grinding ,gear force to oil lubrication . 3.Screw : PBT special in used Φ50mm, L/D of Screw 25:1, apply to PBT material plastic production. plastic level 100%, Material : 38CrMoAl ; Hardness : above HR950-1080, depth of Nitride :0.4-0.7mm, rotation : 95rpm, Extrusion capacity is about 70 KG/Hr.

12 heads 250mm motorized pay off stand

1.Motorized spool is Φ250mm , axle type 2.Tension : automatic to adjust 3.Power : 1/2 HP reducer motor+Inveter (12 units)
 4.Tension pay off spool : Φ400mm , axle type

Optical fiber coloring and rewinding machine

Application: Mainly used for SM, MM fiber full chromatography coloring, which is convenient for identification of multiple fibers in the beam tube. At the same time, the device can also be used in fiber rewinding segments.

Factory Workshop

Large-scale standardized and automatic production

The wire samples

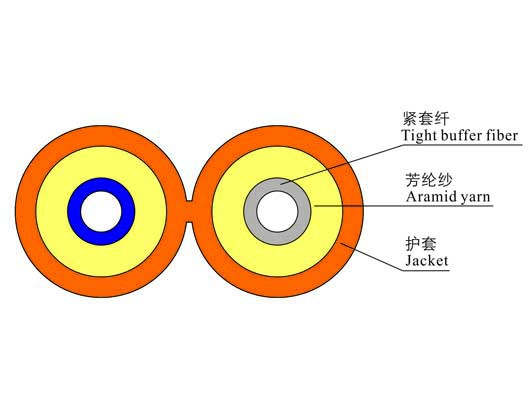

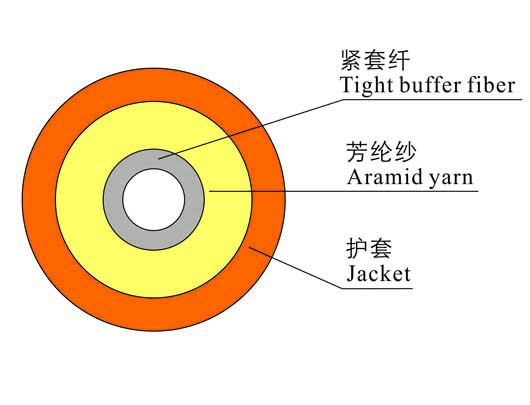

An optical cable is a communication line in which a certain number of optical fibers compose a cable core in a certain manner, and are covered with a sheath, and some are also covered with an outer sheath to realize optical signal transmission.

The basic structure of the optical cable is generally composed of several parts such as the cable core, reinforced steel wire, filler and sheath. In addition, there are components such as a waterproof layer, a buffer layer, and an insulated metal wire as required.

Specification

item	value
Place of Origin	China
Brand Name	HOOHA/HH
Model Number	HH-35/50/500
Usage	Multifunctional
Place of Origin	Guangdong, China
Usage	Multifunctional
Warranty	12 Months
Driven Type	Electric
Condition	New
Certification	CCC, RoHS, ISO, CE
Screw	Single-Screw
Model Number	HH-35/50/500
Packing	Wooden Case
HS Code	8479400000

Packing & Delivery

1. film packing 2. wooden package 3.enclosed wooden package

Company Profile

00:00

02:00

Hu Machine Designer
20 years engineering design experience

Bi Head Engineer
Responsible for project type engineering

Chen Senior Engineer
Machine design for 30 years

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

Exhibition

2018 Bombay, India Fair

Our company took part the exhibition in India in 2018.

2019 Thailand Exhibition

Our company is attached to Thailand to participate in the exhibition in 2018.

2020 International Cable & Wire Fair

Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020.

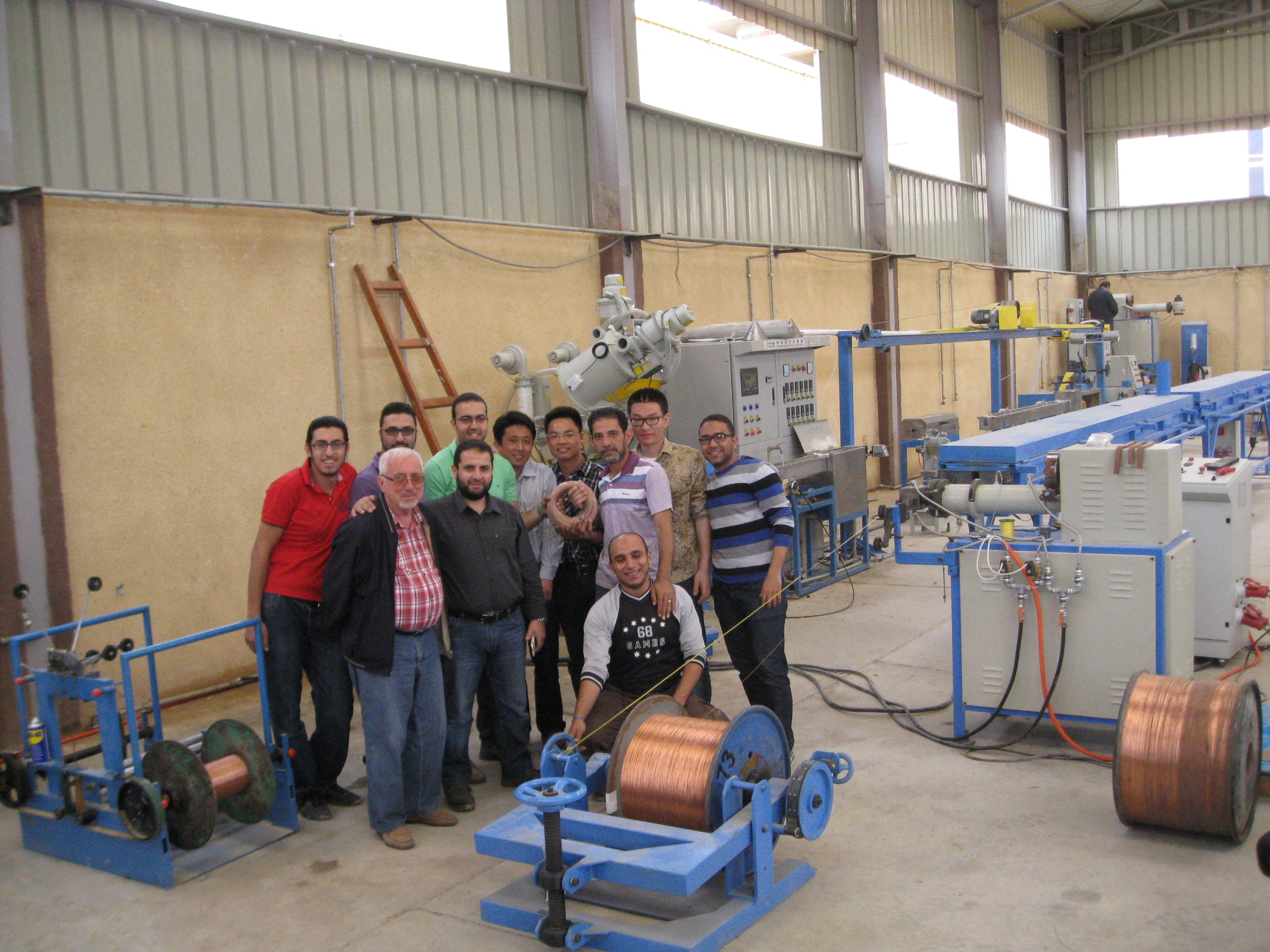

Customer Cases

Egypt

Dubai

Algeria

FAQ

1. who are we?
 We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

 4. why should you buy from us not from other suppliers?
 1.10 year R&D working experience with over seas clients 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

 5. what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
 Accepted Payment Currency:USD,EUR,CNY;
 Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
 Language Spoken:English,Chinese
